Introduction
Up to now there is a loot of IDE (Compiler and Debugger) for the Cortex Mx, in this page there is a little list of the principal IDE that are used for develop on STM32.
Free toolchains for Windows or Linux exist and a short list is here.

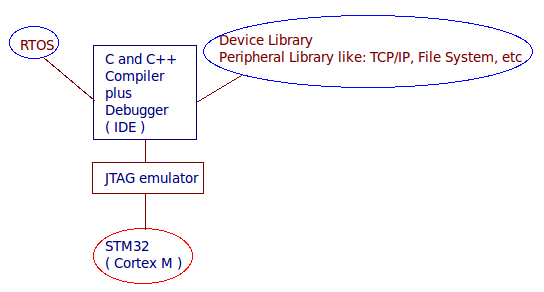

In addition to the development environment is also necessary JTAG emulator that is normally provided by the vendors listed above.
There are, of course, other vendors that offer compatible JTAG emulators with leading development environments.
An alternative may be the ST-LINK-v2 that allows you to interface the STM32 by standard JTAG but also by SWD (two wires).
ST-LINK-v2 support STM8 and STM32.
IMPORTANT:
All
the STM library are release in ANSI C and CMSIS so is it possible use it under
all C-Compiler (IDE).
The toolchain directly supported by STM also contain the configuration files of themselves.
The toolchain directly supported by STM also contain the configuration files of themselves.
-
Free IDE for STM32
- CUBE is the configurator and the library for all the STM32
- mBed is free ARM compiler - See
my tutorials
- ATOLLIC is now free
- KEIL is free for STM32L0xx (Cortex M0+) and STM32F0xx (Cortex M0)
- AC6 - System WorkBench
- CooCox
- Other free tools are here
-
Eva Boards
There are a loot of eva boards for STM32.
STM released the STM32-NUCLEO boards that are ARDUINO compatible, also there is a dedicate eva boards named DISCOVERY Kits and for all the STM32 family, there are one or more professional eva boards (called Evaluation boards) that are the reference design.
STM released the STM32-NUCLEO boards that are ARDUINO compatible, also there is a dedicate eva boards named DISCOVERY Kits and for all the STM32 family, there are one or more professional eva boards (called Evaluation boards) that are the reference design.
For see the eva boards go in the related pages of the STM32F0, F1, F2, etc, or see here.

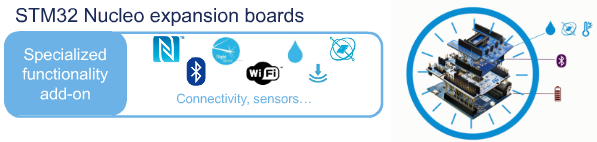

On the STM32-NUCLEO boards is possible use all the Arduino shield, also STM offers Nucleo Expansion Boards that you find here.
On the STM32-NUCLEO boards is possible use all the Arduino shield, also STM offers Nucleo Expansion Boards that you find here.
-

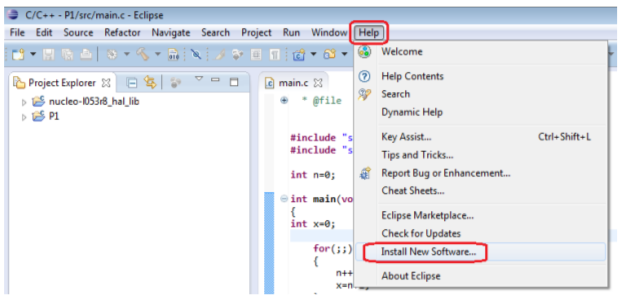

System Workbench for STM32
System Workbench for STM32 is the STM free Integrated Development Environment for STM32 microprocessors (the logo is AC6)
ATTENTION:
Before to access to the Workbench for STM32 you must register on it.
Please read this note: How to install the Workbench for STM32
For test your AC6 installation download this example (it is for STM32F7-Discovery).
Unzip the example into: C:\TestAC6
Run AC6 and choose the workspace: C:\TestAC6
You must compile and debug without problem if your AC6 installation is OK.
-

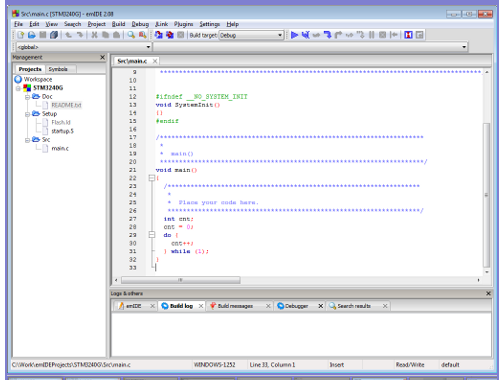

emIDE
emIDE is a free and full-featured IDE (Integrated Development Environment) integrating all features needed for developing and testing embedded applications.
It comes with all needed for embedded programming: An editor with syntax highlighting and code completion and other useful features known from commercial IDEs, the GNU GCC toolchain for compiling applications for various ARM targets and the debugger built to be used with a J-Link do directly load and debug your application in flash or RAM featuring many debug information windows to always see what is going on in the target device.
-
CrossWorks
The home page is here.
CrossWorks is our integrated development environment for microcontrollers.
It has everything you need for firmware development and includes a first-class editor, an intuitive project manager, integrated flash programming, and a feature-packed debugger.
The following versions are available:
CrossWorks for ARM
CrossWorks for AVR
CrossWorks for MAXQ20
CrossWorks for MAXQ30
CrossWorks for MSP430
30-day evaluation period in order to allow you to try out CrossWorks before you buy it.
-

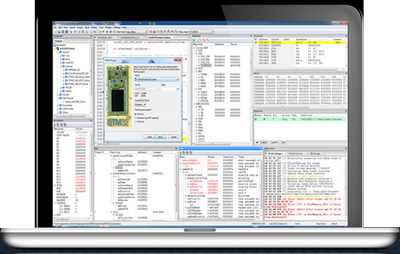

EPS
The home page is here.
EPS is integrated IDE for developing STM32 embedded applications, it use the Code::Blocks IDE (EPS Edition).
It is available an evaluation release for free and, a full release, cost only 199$.
-
MikroElektronika
IAR
The IAR home page is here.
The Kickstart edition is a free version of the IAR Embedded Workbench.
It's limited from 8KB to 32KB code size, but otherwise it's fully functional.
You have to register it in order to get a license key.
IAR was the first tool supported from STM.
Here there are my tutorial concerning Keil MDK.
The Kickstart edition is a free version of the IAR Embedded Workbench.
It's limited from 8KB to 32KB code size, but otherwise it's fully functional.
You have to register it in order to get a license key.
IAR was the first tool supported from STM.
Here there are my tutorial concerning Keil MDK.

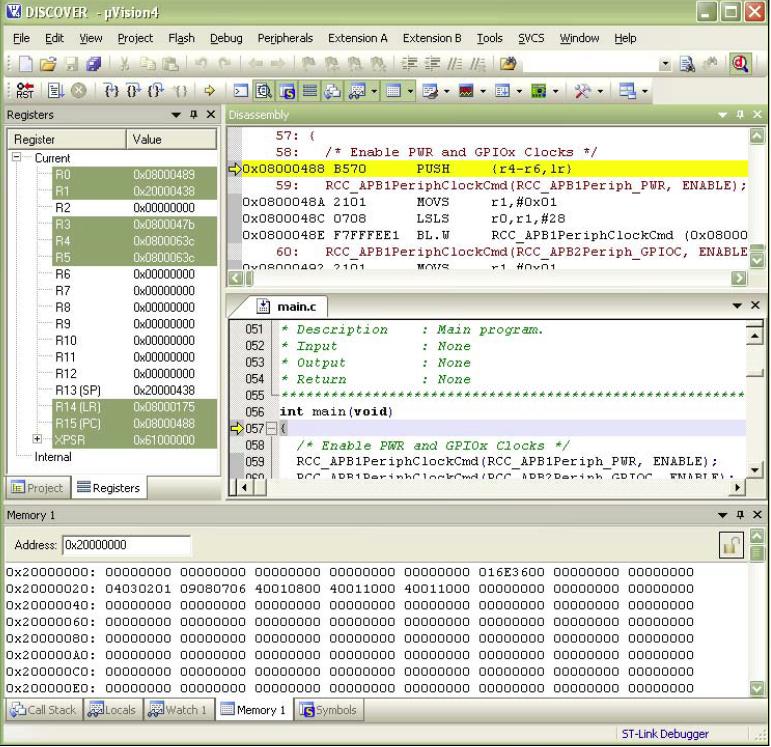

KEIL
The KEIL home page is here.
Keil MDK-ARM-Basic (Windows, under Wine in Linux)
The MDK-ARM-Basic is a free version limited to 32kB code size for all Cortex Mx, but otherwise it's fully functional.
You have to register it in order to get a license key.
Here there are my tutorial concerning Keil MDK.
Keil MDK-ARM-Basic (Windows, under Wine in Linux)
The MDK-ARM-Basic is a free version limited to 32kB code size for all Cortex Mx, but otherwise it's fully functional.
You have to register it in order to get a license key.
Here there are my tutorial concerning Keil MDK.
ATOLLIC
The ATOLLIC home page is here.
TrueSTUDIO Lite is completely free, it is a commercial-quality IDE without code-size or device usage limitations.
This gives the ARM development community a high-quality, free-of-charge tool that everyone can standardize on.
The tool is free to download, use and share. No registration is required.
This is an Eclipse-based development platform that includes an optimizing C/C++ compiler, editor and a debugger.
TrueSTUDIO Lite is completely free, it is a commercial-quality IDE without code-size or device usage limitations.
This gives the ARM development community a high-quality, free-of-charge tool that everyone can standardize on.
The tool is free to download, use and share. No registration is required.
This is an Eclipse-based development platform that includes an optimizing C/C++ compiler, editor and a debugger.
- Here there is an explanation concerning the way to import in ATOLLIC a project generated using CUBE.
- Read our free ARM development & debugging whitepaper !
HITEX
The HITEX home page is here.
Hitex offers a development platform that includes an optimizing C/C++ compiler, editor and a debugger.
There is a free version limited to 32kB code size.
Here there are my tutorial concerning Hitex.
Hitex offers a development platform that includes an optimizing C/C++ compiler, editor and a debugger.
There is a free version limited to 32kB code size.
Here there are my tutorial concerning Hitex.
RAISONANCE
The RAISONANCE home page is here
This is an IDE similar to Eclipse that includes an optimizing C/C++ compiler, editor and a debugger.
There is a free version limited to 32kB code size.
Normally the limitation is on the debugging capability that depends on JTAG HW.
This is an IDE similar to Eclipse that includes an optimizing C/C++ compiler, editor and a debugger.
There is a free version limited to 32kB code size.
Normally the limitation is on the debugging capability that depends on JTAG HW.
Click here to go to INDEX
CooCox
LINUX, Apple and Windows tools
Click here to go to INDEX
CooCox
CooCox is an IDE that integrate: C-Compliler, Intelligent pin configuration, Code generation tool, RTOS, Debugger tool, etc.
CooCox at the moment (Jan. 2012) is free.
CooCox package contain different tools that are:
CooCox at the moment (Jan. 2012) is free.
CooCox package contain different tools that are:
CoIDE
is a new, free and highly-integrated software development environment
for ARM cortex Mx microcontrollers, which includes all the
tools necessary to develop high-quality software solutions in a timely
and cost effective manner. It integrates CoBuilder and CoDebugger for simplicity and ease of use.
CoOS is an embedded real-time multi-task OS specially for ARM Cortex M series.
CoSmart is an intelligent pin configuration and code generation tool.
It provides pin multiplexing settings configuration, pin setting conflicts detection, effective code generation and I/O cell characteristics specification.
CoAssistant is a register assistant which could be used conveniently on line.
It is specially supplied for ARM Cortex Mx embedded hardware and software development engineers.
It could be used to develop chips for chip developers and be used as chip manual for chip users.
CoX Peripheral Library is the definition of a group of interface functions. It defines the functional access functions of MCU’s common peripherals, such as IIC, SPI, UART, etc. CoX makes full functions, drivers based on CoX can be ported to other MCU easily.
CoFlash is a stand-alone Cortex Mx Flash Programming software for PCs running Microsoft Windows.
CoFlash has an intuitive user interface with a traditional Windows graphical user interface (GUI), and a command line mode as well. CoFlash requires a CoLink.
It is able to work with most common Cortex-Mx MCUs.
Users can define his own algorithm to support more flash devices, regardless of internal or external flash.
Colink is a small ARM Cortex Mx JTAG hardware debugging probe. It directly supports CoIDE and CoFlash, and integrates seamlessly into IAR Embedded Workbench and Keil RealView MDK.
CoLinkEx is a hardware debugging adapter which supports SW debugging and supports both ARM Cortex Mx devices, it supports debugging in CooCox software and Keil Realview MDK.
Click here to see a video tutorial.
CoOS is an embedded real-time multi-task OS specially for ARM Cortex M series.
Features:
Free and open real-time Operating System
Specially designed for Cortex-M series
Scalable, minimum system kernel is only 974Bytes
Adaptive Task Scheduling Algorithm.
Supports preemptive priority and round-robin
Interrupt latency is 0
Stack overflow detection option
Semaphore, Mutex, Flag, Mailbox and Queue for communication & synchronisation
Supports the platforms of ICCARM, ARMCC, GCC
Specially designed for Cortex-M series
Scalable, minimum system kernel is only 974Bytes
Adaptive Task Scheduling Algorithm.
Supports preemptive priority and round-robin
Interrupt latency is 0
Stack overflow detection option
Semaphore, Mutex, Flag, Mailbox and Queue for communication & synchronisation
Supports the platforms of ICCARM, ARMCC, GCC
CoSmart is an intelligent pin configuration and code generation tool.
It provides pin multiplexing settings configuration, pin setting conflicts detection, effective code generation and I/O cell characteristics specification.
CoAssistant is a register assistant which could be used conveniently on line.
It is specially supplied for ARM Cortex Mx embedded hardware and software development engineers.
It could be used to develop chips for chip developers and be used as chip manual for chip users.
CoX Peripheral Library is the definition of a group of interface functions. It defines the functional access functions of MCU’s common peripherals, such as IIC, SPI, UART, etc. CoX makes full functions, drivers based on CoX can be ported to other MCU easily.
CoFlash is a stand-alone Cortex Mx Flash Programming software for PCs running Microsoft Windows.
CoFlash has an intuitive user interface with a traditional Windows graphical user interface (GUI), and a command line mode as well. CoFlash requires a CoLink.
It is able to work with most common Cortex-Mx MCUs.
Users can define his own algorithm to support more flash devices, regardless of internal or external flash.
Colink is a small ARM Cortex Mx JTAG hardware debugging probe. It directly supports CoIDE and CoFlash, and integrates seamlessly into IAR Embedded Workbench and Keil RealView MDK.
CoLinkEx is a hardware debugging adapter which supports SW debugging and supports both ARM Cortex Mx devices, it supports debugging in CooCox software and Keil Realview MDK.
Click here to see a video tutorial.
LINUX, Apple and Windows tools
My prefered tools are: Eclipse + GCC + OpenOCD + freeRTOS.
If you need more info click here to see the ODeV project by Oliveri S.
References:
If you need more info click here to see the ODeV project by Oliveri S.
References:
GNU ARM toolkit homepage
Sourcery G++ Lite Edition homepage
Here's a guide on compiling GCC with floating-point support for STM32 development.
The libopencm3 project aims to create an open-source firmware library for various ARM Cortex-Mx microcontrollers.
Sourcery G++ Lite Edition homepage
Here's a guide on compiling GCC with floating-point support for STM32 development.
The libopencm3 project aims to create an open-source firmware library for various ARM Cortex-Mx microcontrollers.
The libopencm3 code is released under the terms of the GNU General Public License (GPL), version 3 or later.
GNU toolchain from ARM Cortex-R & Cortex-M processors is here.Click here to go to INDEX
