STM32F429-Discovery
+
USB Virtual COM & TFT





Home Page
STM32F4xx Page
STM32 Page


By:           www.emcu.it
Date:        January 2016
Name:      USB Virtual COM (or USB CDC device) + TFT driver
Note:        This SW was tested on STM32F429-Discovery and compiled using the KEIL v.5.16a
                 STM32F429-Discovery page is here:
                 http://www.emcu.it/STM32F4xx/STM32F4xx.html#STM32F429I-DISCO
                 see also here:
                 http://www.emcu.it/STM32F4xx/STM32F4xx.html#Tutorial

This is a modification of the: Majerle example

How to use:
            Connect the STM32F429-Discovery micro USB to a PC.
                 On the STM32F429-Discovery TFT are shown the necessary setup/informations.
                 For continue you must press the BLUE button on the
STM32F429-Discovery .
                 On the PC run TeraTerm and configure it with this parameters:
                                BaudRate:         115200
                                Data Bit:            8
                                Parity:                NONE
                                Stop Bit:            1
                                Flow Control:    NONE
                 Any character typed on PC (using TeraTerm) is received from the
                 STM32F429-Discovery micro USB
and it is sent back to the PC (again via micro USB)
.
                Any character is also shown on TFT.

Remember to instal on your PC the:
STM Virtual COM Port Driver that is here.

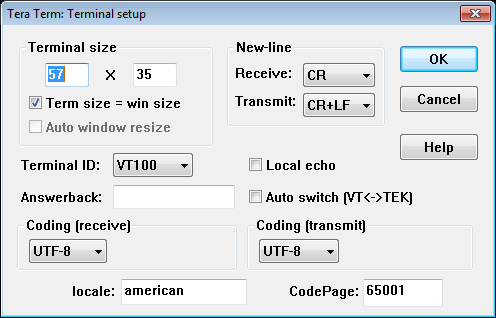

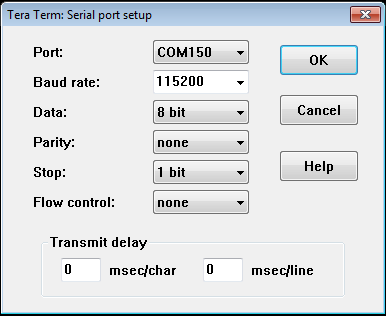

Below there are the TeraTerm SetUp

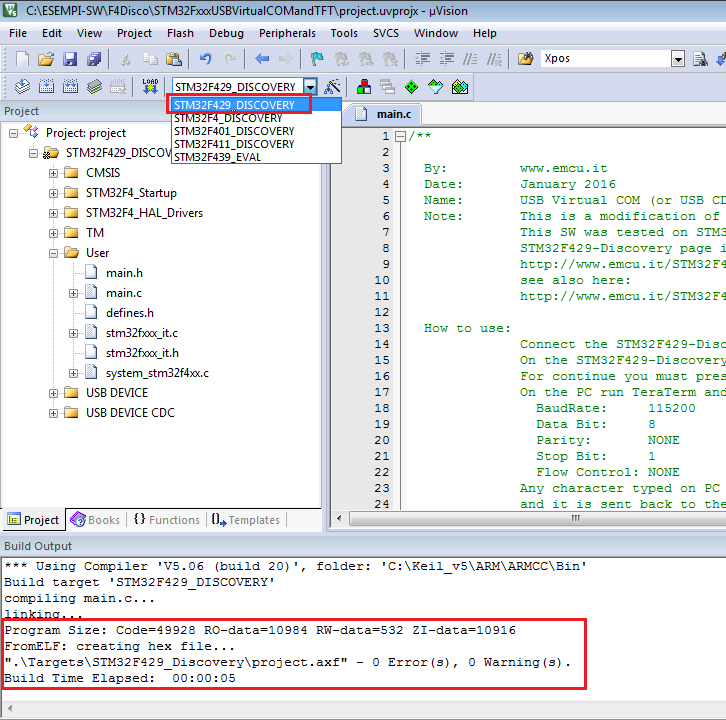

Below there is the basic configuration of KEIL and the result of the compilation.

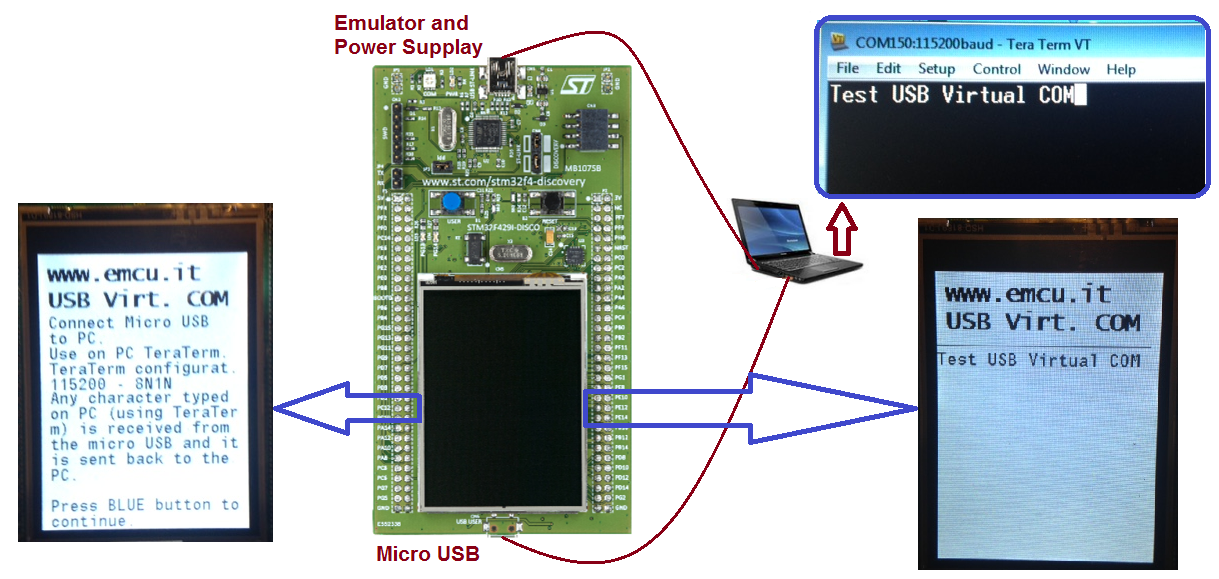

The wiring from STM32F429-Discovery and PC





The SW is free and the Ref.Cod. is: STM32F429Disco-USBVirtualCOMandTFT
Please ask me the password for open the: STM32F429Disco-USBVirtualCOMandTFT
and specify also your City and Country.
