General Presentation

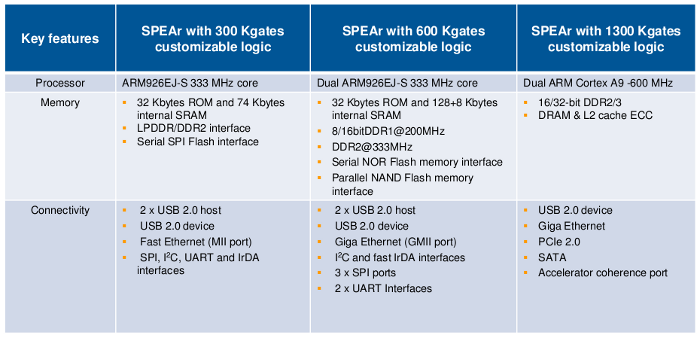

SPEAr is a family of eMPU (embedded Micro Processor Unit) with customizable area running standard OS (e.g. Linux):
Based on ARM processors (ARM9 & CORTEX A9)
Standard product on SPEAr 3x0
Standard product on SPEAr 600
Standard product on SPEAr 13xx based on CORTEX A9
Including a set of standard peripherals:
DDR2 I/F, UART, SPI, I2C, IRQ, USB, Ethernet, Flash I/F, ADC, ... and specific peripherals :
JPEG codec, Crypto coprocessor, Camera interface, ...
Efficient power management features:
Dynamic clock scaling (32kHz – 333 MHz)
Clock gating (switch clock from peripherals)

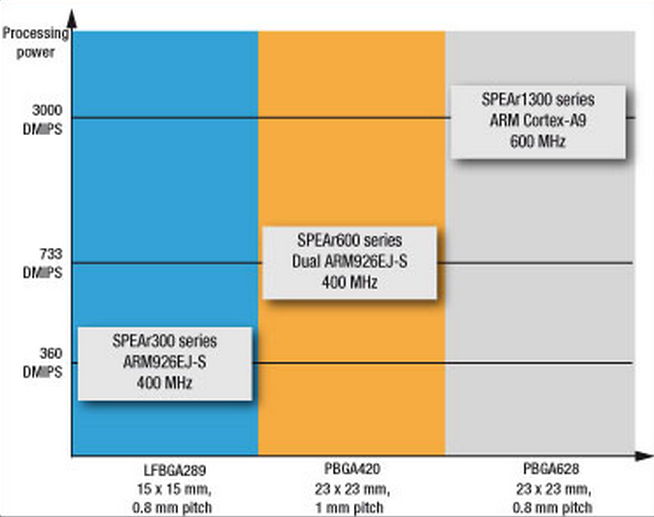

Performance: from 366 to 3000+ DMIPS
High end process : 90nm (SPEA 600) - 65nm (SPEAr 3x0) - 55nm (SPEAr 13xx)





Click here do go to INDEX




Official Link
In general for, documentation, application notes, software etc., refer to the website dedicated to SPEAr which you can access by clicking:
http://www.st.com/web/catalog/mmc/FM169/SC1156

Click here do go to INDEX






SPEAR brochoures
SPEAr embedded microprocessors product presentation is here
Click here do go to INDEX






Companion Chips
Memories
M24LRxx Dual Interface EEPROM - EEPROM + RFID
EEPROM (I2C : M24xxx, SPI : M95xxx)
Power supply
PM6641 : triple monolithic DC/DC converter
ST1S03 : monolithic DC/DC converter 1.5MHz
L6920 / STBB1PUR : Step up converters
STw4102 : single cell Li-ion charger + supervisor
STM1068 : smart on off controller
STM6513 : smart reset supervisor
Timing
M41T81/82/93 Serial Real-Time-Clocks
Audio
TS499x : class AB / D amplifiers
STA3xx : I2S power sound td terminals
LCD / Touch screen
STM8T14x : Capacitive single Key proximity
STM8L: CT-firmw
Protection and Interface
ST8024 : smartcard I/F
ST3232 : RS232 level shifter
ST485 : RS485 level shifter
E-STE100P / E-STE101P / ST802RT1
SLVU2 8 4A1 : Ethernet primary protection
USBLC6-4SC6 : double USB host protection
STMPS2242 : double USB power controller
HSP061 : quad high speed line protection
EMIF06-MSD02N16 : SDIO protection / filter
DALC208 : Diode array protection

This is just a short example list and does NOT include all families and products !!


Click here do go to INDEX





Eva-Boards

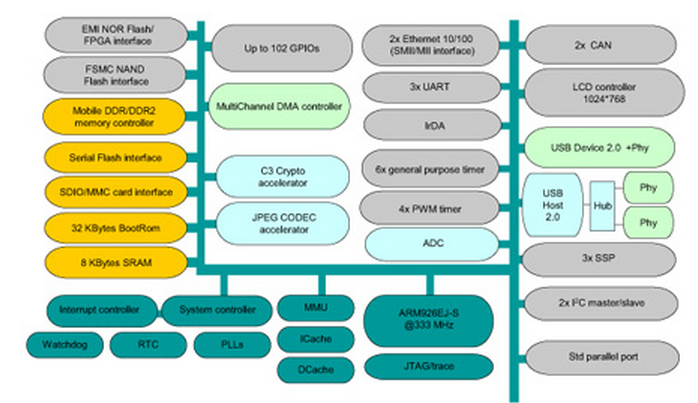

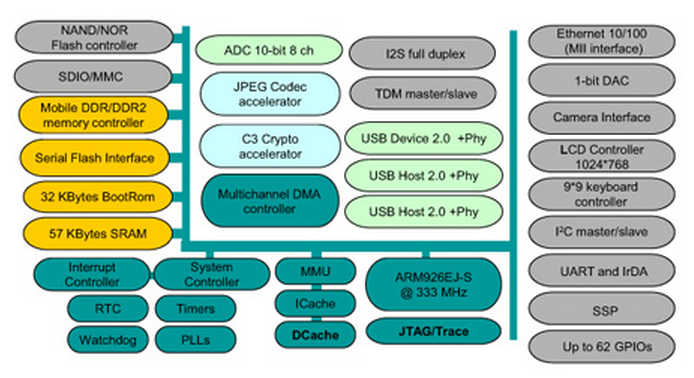

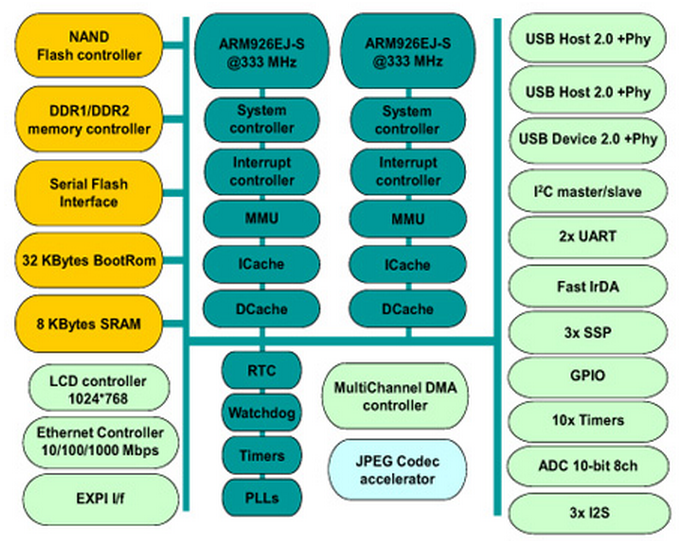

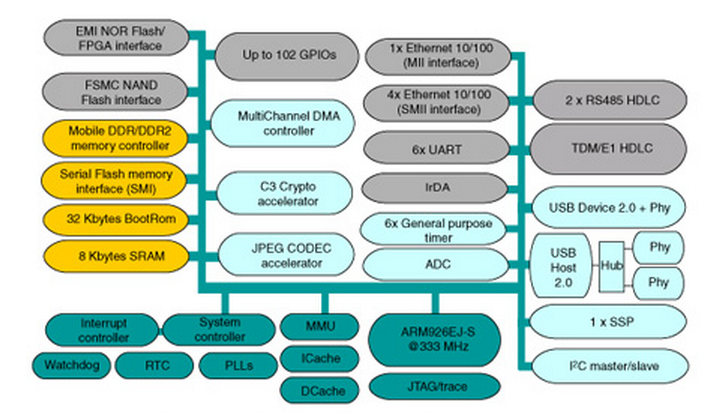

Below there are the block diagrams of SPEAr 300/310/320 and 600.
