Based on STM advanced proprietary technologies, ST's MEMS address the most innovative features required on the market, ranging from mobile and consumer applications to the innovative needs of the healthcare and automotive markets.
Housed in ultra-compact packages, MEMS achieve a high level of motion-control detection, embedding the most useful smart functions and minimizing the power consumption.
ATTENTION:
Not all MEMS are for distribution, see this presentation that cover the MEMS for distribution.
For more info contact your local SILICA FAE.
Link
Accelerometer
LINK
MEMS sensors home page is here
MEMS Evaluation Boards are here
MEMS Accelerometers are here
MEMS Microphones (audio sensor omnidirectional digital microphone) are here
MEMS Pressure sensors are here
Video are here
MEMS Evaluation Boards are here
MEMS Accelerometers are here
MEMS Microphones (audio sensor omnidirectional digital microphone) are here
MEMS Pressure sensors are here
Video are here
Accelerometer
The accelerometers home page is here.
NEWS

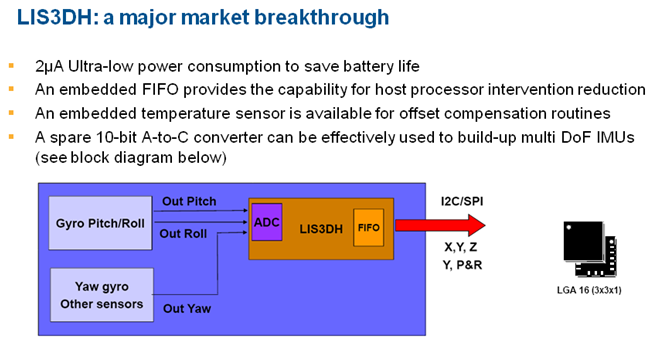

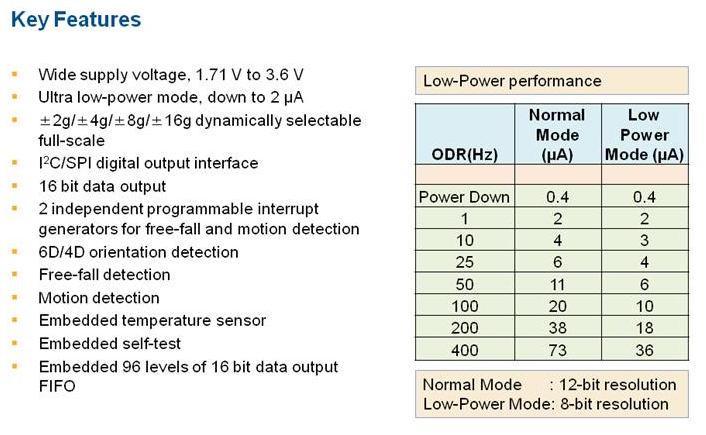

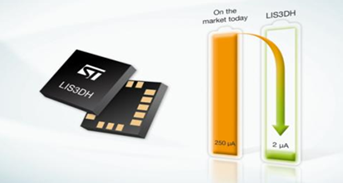

3 axes Ultra Low Power Accelerometer - LIS3DH
AIS328DQ is new automotive-qualified low-g accelerometer offers excellent stability
The AIS328DQ is an ultra low-power high performance three axis linear accelerometer with a digital serial interface SPI standard output.
An I2C compatible interface is also available.
The device features ultra low-power operational modes that allow advanced power saving and smart sleep-to-wakeup functions. The AIS328DQ has dynamic user-selectable full-scales of ±2g/±4g/±8g and it is capable of measuring accelerations with output data rates from 0.5 Hz to 1 kHz.
The self-test capability allows the user to check the functioning of the sensor in the final application.
The device may be configured to generate an interrupt signal through inertial wakeup/free-fall events, or by the position of the device itself.
Thresholds and timing of interrupt generators are programmable by the end user on-the-fly. Available in small Quad Flat Pack no-lead package (QFPN) with a 4x4 mm footprint, the AIS328DQ is able to respond to the trend towards application miniaturization, and is guaranteed to operate over a temperature range from -40 °C to +105 °C.
MEMS audio sensor omnidirectional digital microphone
The microphone page is here.
MP34DB01 - MEMS audio sensor omnidirectional digital microphone
Description
The
MP34DB01 is a compact, low-power, bottom port, omnidirectional digital
MEMS microphone. The MP34DB01 is built with a capacitive sensing
element and an IC interface with stereo operation capability.
The
sensing element, capable of detecting acoustic waves, is manufactured
using a specialized silicon micromachining process dedicated to produce
audio sensors.
The IC interface is manufactured using a CMOS process that allows designing a dedicated circuit able to provide a digital signal externally in PDM format.
The MP34DB01 has an acoustic overload point of 120 dBSPL with a best on the market 62 dB signal-to-noise ratio and -26 dB sensitivity.
The MP34DB01 is available in an SMD-compliant package and it is guaranteed to operate over an extended temperature range from -30 °C to +85 °C.
The IC interface is manufactured using a CMOS process that allows designing a dedicated circuit able to provide a digital signal externally in PDM format.
The MP34DB01 has an acoustic overload point of 120 dBSPL with a best on the market 62 dB signal-to-noise ratio and -26 dB sensitivity.
The MP34DB01 is available in an SMD-compliant package and it is guaranteed to operate over an extended temperature range from -30 °C to +85 °C.
Key Features
Single supply voltage
Low power consumption
120 dBSPL acoustic overload point
Omnidirectional sensitivity
PDM single-bit output with option for stereo configuration
RHLGA package (SMD-compliant)
ECOPACK®, RoHS and “Green” compliant
120 dBSPL acoustic overload point
Omnidirectional sensitivity
PDM single-bit output with option for stereo configuration
RHLGA package (SMD-compliant)
ECOPACK®, RoHS and “Green” compliant
The
MP45DT01 is a compact low-power microphone built up with a sensing
element and an IC interface with stereo operation capability.
The sensing element, capable of detecting acoustic waves, is manufactured using a specialized silicon micromachining process to produce audio sensors.
The IC interface is manufactured using a CMOS process that allows to design a dedicated circuit able to provide a digital signal to the external world in PDM format.
The MP45DT01 has an acoustic overload point of 120 dBSPL with 58 dB signal to noise ratio.
The MP45DT01 is available in SMD compliant package and it is guaranteed to operate over an extended temperature range from -30 °C to +85 °C.
The sensing element, capable of detecting acoustic waves, is manufactured using a specialized silicon micromachining process to produce audio sensors.
The IC interface is manufactured using a CMOS process that allows to design a dedicated circuit able to provide a digital signal to the external world in PDM format.
The MP45DT01 has an acoustic overload point of 120 dBSPL with 58 dB signal to noise ratio.
The MP45DT01 is available in SMD compliant package and it is guaranteed to operate over an extended temperature range from -30 °C to +85 °C.
Key Features
Single supply voltage operation
Low power consumption
120 dBSPL acoustic overload point
Omni-directional sensitivity
PDM single-bit output with stereo operation support
HLGA package
ECOPACK®RoHS and “Green” compliant
Low power consumption
120 dBSPL acoustic overload point
Omni-directional sensitivity
PDM single-bit output with stereo operation support
HLGA package
ECOPACK®RoHS and “Green” compliant
Description
Key Features
The
MP45DT02 is a compact, low-power, top port, omnidirectional digital
MEMS microphone. The MP45DT02 is built with a sensing element and an IC
interface with stereo capability.
The sensing element, capable of detecting acoustic waves, is manufactured using a
specialized silicon micromachining process to produce audio sensors.
The IC interface is manufactured using a CMOS process that allows designing a dedicated circuit able to provide a digital signal externally in PDM format.
The MP45DT02 has an acoustic overload point of 120 dBSPL with a best on the market 58 dB signal-to-noise ratio and -26 dB sensitivity.
The MP45DT02 is available in an SMD-compliant package and is guaranteed to operate over an extended temperature range from -30 °C to +85 °C.
The MP45DT02’s digital output and package size (1.25 mm thick) make this device the best solution for laptop and portable computing applications.
The sensing element, capable of detecting acoustic waves, is manufactured using a
specialized silicon micromachining process to produce audio sensors.
The IC interface is manufactured using a CMOS process that allows designing a dedicated circuit able to provide a digital signal externally in PDM format.
The MP45DT02 has an acoustic overload point of 120 dBSPL with a best on the market 58 dB signal-to-noise ratio and -26 dB sensitivity.
The MP45DT02 is available in an SMD-compliant package and is guaranteed to operate over an extended temperature range from -30 °C to +85 °C.
The MP45DT02’s digital output and package size (1.25 mm thick) make this device the best solution for laptop and portable computing applications.
Key Features
Single supply voltage
Low power consumption
120 dBSPL acoustic overload point
Omnidirectional sensitivity
PDM single-bit output with option for stereo configuration
HLGA package (SMD-compliant)
ECOPACK®,RoHS, and “Green” compliant
Low power consumption
120 dBSPL acoustic overload point
Omnidirectional sensitivity
PDM single-bit output with option for stereo configuration
HLGA package (SMD-compliant)
ECOPACK®,RoHS, and “Green” compliant
MEMS eva-board
MEMS Evaluation boards are here
If you need test the MP45DT02 (microphone), LIS302DL (ultra compact low-power three-axis linear accelerometer), in conjuntion to the STM32F407VGT6 (Cortex M4), use STM32F4-Discovery.

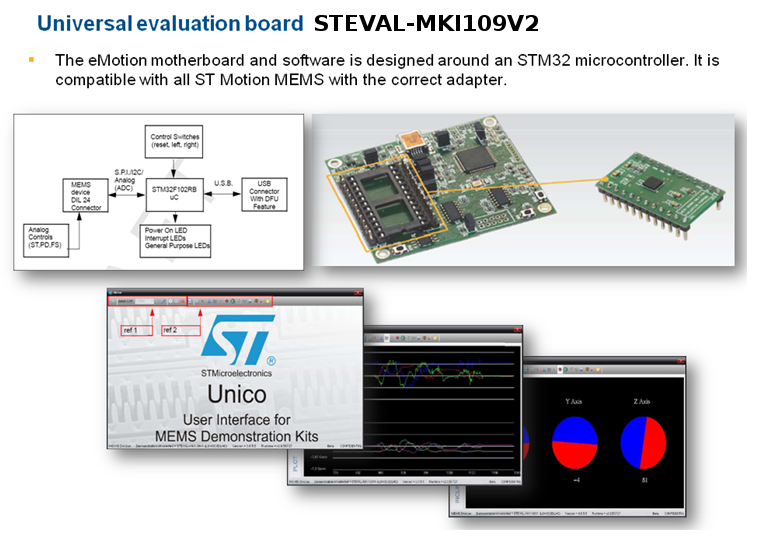

The STEVAL-MKI109V1 is a motherboard designed to provide users with a complete, ready-to-use platform for the evaluation of STMicroelectronics’ MEMS products.
The board features a DIL24 socket to mount all available adapters for both digital and analog output MEMS devices.
The motherboard includes a high-performance 32-bit microcontroller, which functions as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (GUI), or dedicated software routines for customized applications.
-
For UpDate the firmware on STEVAL-MKI109V1 and for a brief explanation concerning the way to use the UNICO SW on STEVAL-MKI109V1 see here.
- iNEMO™ V1: Multi-sensor inertial measurement unit (IMU) devices page
It is substitute by iNEMO V2, see below
Features and Description
- Two power supply options: power connector, USB connector
- Battery monitoring via LBO signal
- STM32F103: high-density Performance line ARM-based 32-bit MCU with 256- to 512-Kbyte Flash, USB, CAN, 11 timers, 3 ADCs, 13 communication interfaces
- Boot from user Flash, system memory or SRAM
- LPR530AL: 2–axis gyroscope (roll, pitch) 300°/s full scale, analog output, optional additional filters
- LPY530AL: 2–axis gyroscope (pitch, yaw) 300°/s full scale, analog output, optional additional filters
- LIS331DLH: 3–axis accelerometer, ±2g/±4g/±8g full scale, SPI digital output
- HMC5843: 3-axis magnetometer, configurable full scale ±4 gauss (max), I2C digital output
- LPS001DL: pressure sensor 300-1100 mbar absolute full scale, I2C digital output, barometer
- STLM75: temperature sensor, –55 °C to +125 °C range, I2C digital interface
- Wireless capability, ZigBee® module plug-in with InSight™ Port
- MicroSD™ card slot
- COM connector with RTS and CTS signals
- USB 2.0 full speed connection
- Reset button
- User LED and button
- RoHS compliant

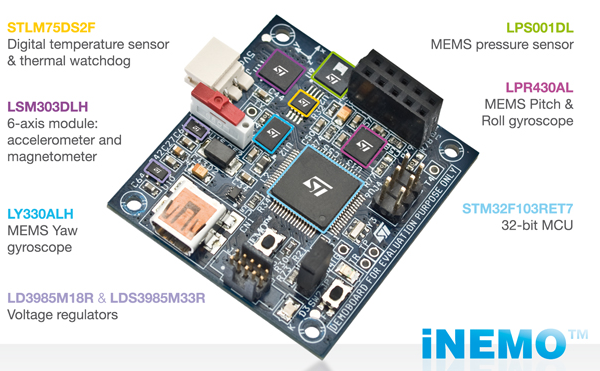

- iNEMO™ V2: Multi-sensor inertial measurement unit (IMU) devices page
Features and Description
- Two power supply options: power connector, USB connector
- STM32F103RE: high-density performance line ARM-based 32-bit MCU with 256 to 512 KB Flash, USB, CAN, 11 timers, 3 ADCs and 13 communication interfaces
- LPR430AL: 2-axis gyro (roll, pitch) 300°/s full scale with analog output and optional additional filters
- LY330ALH: yaw-axis gyro 300°/s full scale with analog output and optional additional filters
- LSM303DLH: 6-axis geomagnetic module: ±2 g / ±4 g / ±8 g linear acceleration full scale, magnetic field configurable full scale ±1.3 to ±8.1 gauss, I2C digital output
- LPS001DL: pressure sensor 300-1100 mbar absolute full scale with I2C digital output and barometer
- STLM75: temperature sensor with –55 to +125°C range and I2C digital interface
- Extended connector for wireless connectivity
- MicroSD™ card slot
- COM connector with RTS and CTS signals
- USB 2.0 full speed connection
- Reset button
- User LED and button
- RoHS compliant
- INEMO-M1 coming soon
- The INEMO-M1 is the smallest 9-axis system-on-board (SoB) of the iNEMO module family.
It integrates multiple ST sensors with a powerful computational core: a 6-axis geomagnetic module, a 3-axis gyroscope and an ARM® Cortex™ M3 32-bit MCU.
This 9-DoF inertial system represents a fully integrated solution that can be used in numerous applications such as virtual reality, augmented reality, image stabilization, human machine interfaces, robotics and inertial body tracking.
A complete set of communication interfaces in a very small size form factor (13x13x2 mm) make the INEMO-M1 system-on-board a flexible solution for effortless orientation estimation in embedded applications.
- The INEMO-M1 is the smallest 9-axis system-on-board (SoB) of the iNEMO module family.
